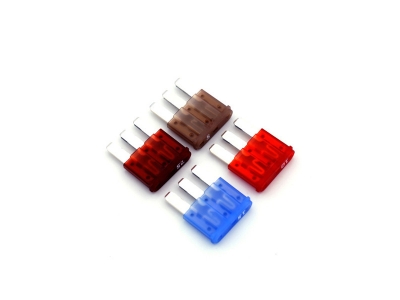

Littelfuse 0337 Series Car Fuse

The MICRO3TM Fuse is the new standard for vehicle circuit protection. The MICRO3TM Fuse has 3 terminals and 2 fuse elements with a common center terminal. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO3TM Fuse the recommended choice for protection.

  • Brand： Littelfuse
  • Classification： Car Fuse
  • Voltage： 32V
  • Current： 3A-15A

Voltage Rating: 1000A @ 32 VDC

Interrupting Ratings: 32VDC
Component Level Temperature Range:-40 ?C to +125 ?C
ystem Level Temperature Range:  -40 ?C to +105 ?C



Part NumberCurrent Rating
(A)		Test. Cable
Size(mm2)		Typ. Voltage
Drop(mV)		Typ. Cold Resistance
(mΩ)		Typ.I2t(A2s)
Size Fuse BladesCenter Fuse Blades
0337003._30.5111331.79
0337005._50.5111617.417
033707.5_7.50.751.510610.847
0337010._1012.51027.789
0337015._151.54944.9189
