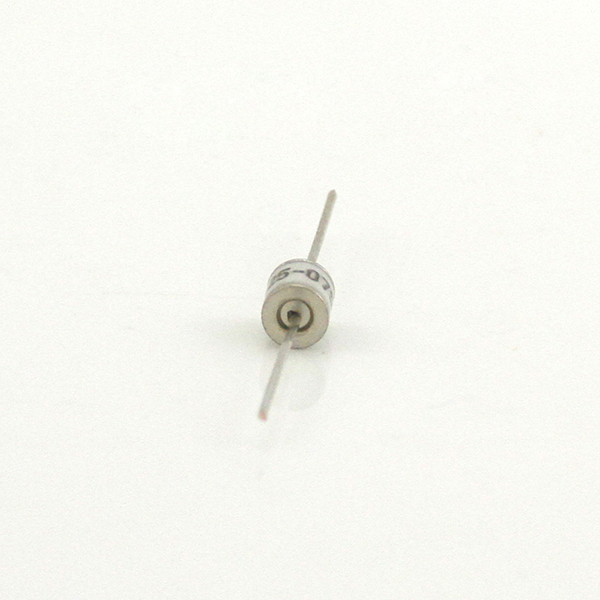

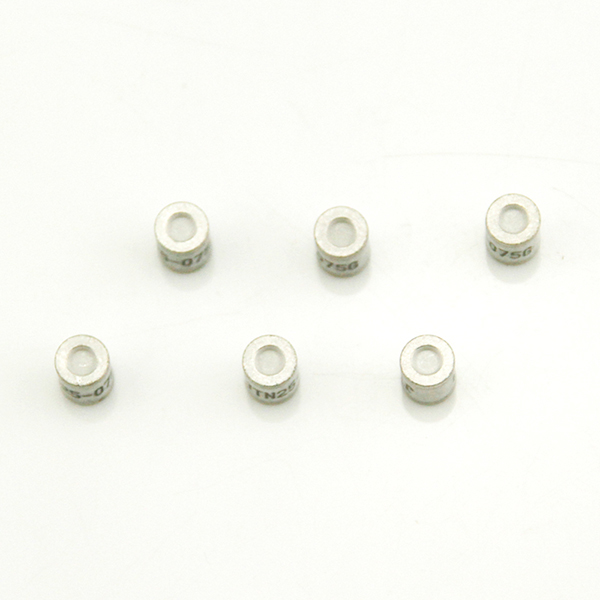

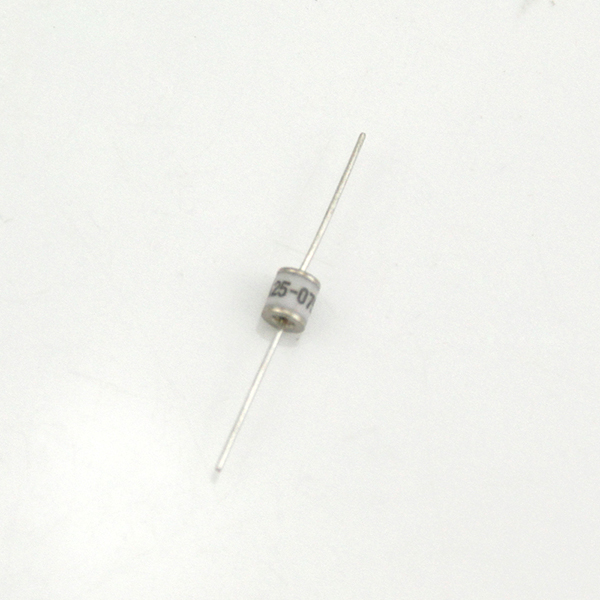

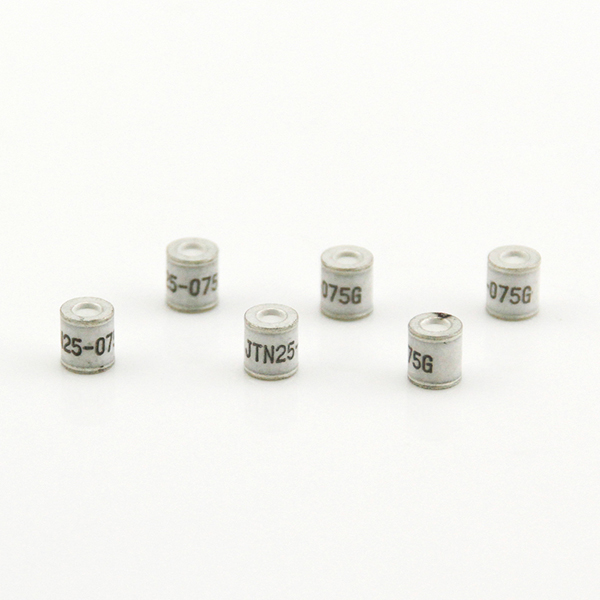

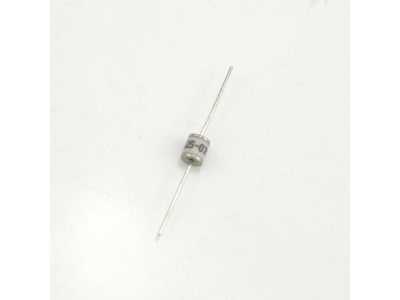

JTA25G-JTN25G series

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path forvoltage spikes.The ceramic envelope and with nickelconnectors allow for high loads and JDT offers products that function at 20KA, 40KA, 50KA, 60KA, 100KA & 150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations,security systems,HID and high quality Surge Protection Devices (SPD).

  • Brand： JDT FUSE
  • Classification： gas discharge tube
  • Voltage： 70-800V
  • Current： 5KA

Electrical properties

Part
Number
DC
Spark-over
Voltage
Maximum
Impulse
Breakdown
Voltage
Max.
Impulse
Discharge
Current
(8/20μs)
Impulse
Life
(10/1000μs)
Normal
Alternating
Discharge
Current
DC
Holdover
Voltage
Minimum
insulation
Resistance
Maximum
Capacitance
(1MHz)
100V/
S
100V/
μS
1KV/
μS
1
times
10
times
100A
50Hz
1Sec
Single
9Cycles
(V)
(V)
(V)
(KA)
Times
(A)
(V)
(GΩ)
(pF)
JTA25-070G
70±20%
700
800
8
5
300
5
25
52
1
1
JTA25-075G
75±20%
700
800
8
5
300
5
25
52
1
1
JTA25-090G
90±20%
600
700
8
5
300
5
25
52
1
1
JTA25-150G
150±20%
600
700
8
5
300
5
25
52
1
1
JTA25-230G
230±20%
600
700
8
5
300
5
25
80
1
1
JTA25-250G
250±20%
600
700
8
5
300
5
25
80
1
1
JTA25-300G
300±20%
700
900
8
5
300
5
25
150
1
1
JTA25-350G
350±20%
700
900
8
5
300
5
25
150
1
1
JTA25-400G
400±20%
800
1000
8
5
300
5
25
150
1
1
JTA25-470G
470±20%
900
1100
8
5
300
5
25
150
1
1
JTA25-600G
600±20%
1300
1500
8
5
300
5
25
150
1
1
JTA25-800G
800±20%
1500
1700
8
5
300
5
25
150
1
1
JTN25-070G
70±20%
700
800
8
5
300
5
25
52
1
1
JTN25-075G
75±20%
700
800
8
5
300
5
25
52
1
1
JTN25-090G
90±20%
600
700
8
5
300
5
25
52
1
1
JTN25-150G
150±20%
600
700
8
5
300
5
25
52
1
1
JTN25-230G
230±20%
600
700
8
5
300
5
25
80
1
1
JTN25-250G
250±20%
600
700
8
5
300
5
25
80
1
1
JTN25-300G
300±20%
700
900
8
5
300
5
25
150
1
1
JTN25-350G
350±20%
700
900
8
5
300
5
25
150
1
1
JTN25-400G
400±20%
800
1000
8
5
300
5
25
150
1
1
JTN25-470G
470±20%
900
1100
8
5
300
5
25
150
1
1
JTN25-600G
600±20%
1300
1500
8
5
300
5
25
150
1
1
JTN25-800G
800±20%
1500
1700
8
5
300
5
25
150
1
1
