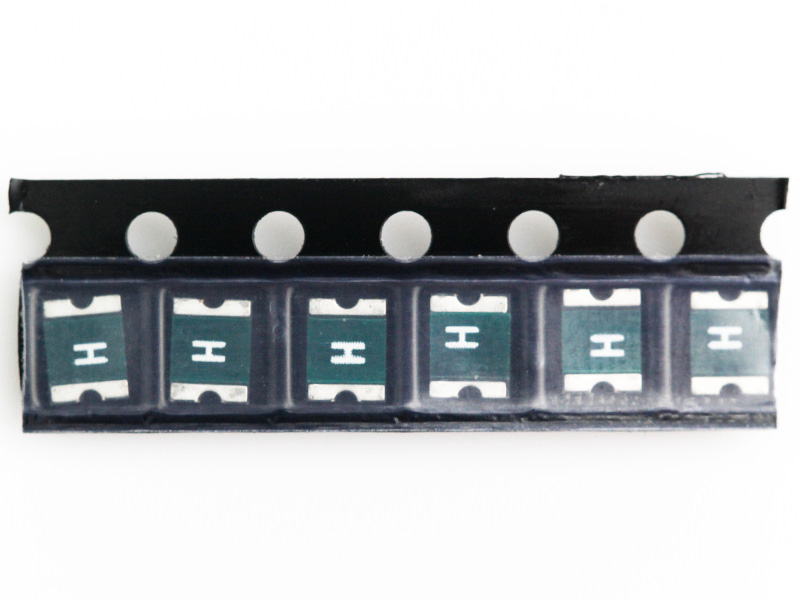

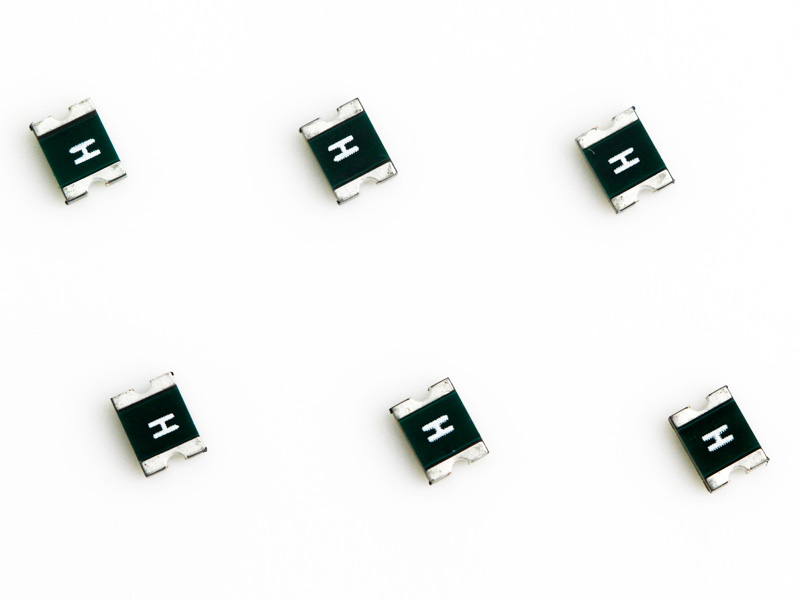

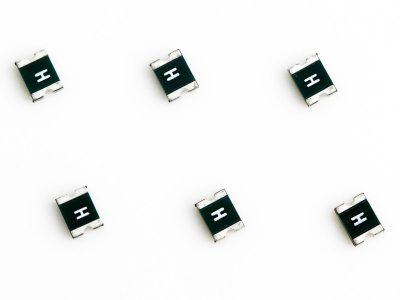

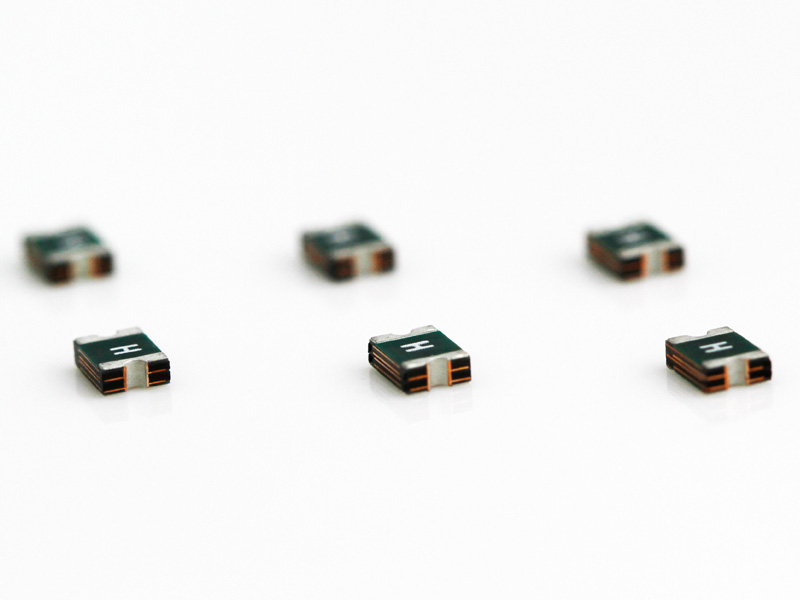

力特1210L系列貼片保險絲

1210L系列器件可為空間極為有限且需要自恢復保護的設備提供表面貼裝過電流保護。

  • 品牌： 力特/littelfuse
  • 分類： 貼片保險絲
  • 最大電壓： 6V-30V
  • 額定電流： 0.05A-2A

JDTFUSELittelfuse_1210L規(guī)格書

2

1210L Series Electrical Characteristics

Part Number
Marking
Ihold
(A)
Itrip
(A)
Vmax
(Vdc)
Imax
(A)
Pd
typ.
(W)
Maximum Time
To Trip
Resistance
Current
(A)
Time
(Sec.)
Rmin
(Ω)
R1max
(Ω)
1210L005
A
0.05
0.15
30
10
0.60
0.25
1.50
3.600
50.00
1210L010
B
0.10
0.30
30
10
0.60
0.50
1.50
1.600
15.00
1210L020
C
0.20
0.40
30
10
0.60
8.00
0.02
0.800
5.000
1210L035
E
0.35
0.70
6
100
0.60
8.00
0.20
0.320
1.300
1210L035/30
E3
0.35
0.70
30
100
0.60
8.00
0.20
0.320
1.300
1210L050
F
0.50
1.00
13.2
100
0.60
8.00
0.05
0.250
0.900
1210L050/30
F3
0.50
1.00
30
40
0.60
8.00
0.15
0.220
0.900
1210L075
G
0.75
1.50
6
100
0.60
8.00
0.10
0.130
0.400
1210L075/24
G2
0.75
1.50
24
100
0.60
8.00
0.10
0.130
0.400
1210L110/12
H1
1.10
2.20
12
100
0.6
8.00
0.10
0.060
0.210
1210L110/16
HF
1.10
2.20
16
100
0.6
8.00
0.10
0.060
0.210
1210L110TH
H
1.10
2.20
8
100
0.60
8.00
0.10
0.060
0.210
1210L150/16
KF
1.50
3.00
16
100
0.80
8.00
0.30
0.040
0.110
1210L150TH
K
1.50
3.00
6
100
0.80
8.00
0.30
0.040
0.110
1210L175
V
1.75
3.50
6
100
0.80
8.00
0.60
0.020
0.080
1210L200
L
2.00
4.00
6
100
0.80
8.00
1.00
0.015
0.070


JDTFUSE

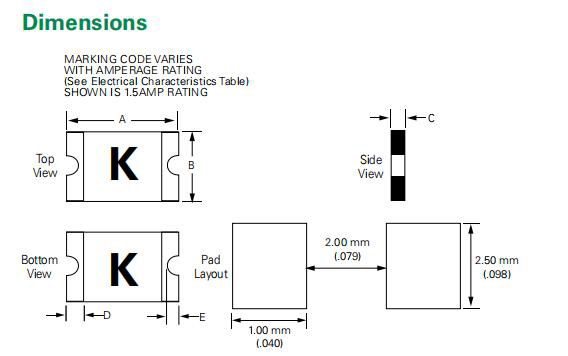

Part Number
A
B
C
D
E
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
1210L005
0.120.143.03.430.090.112.352.800.030.050.751.250.010.030.250.750.0040.020.100.50
1210L010
0.120.143.03.430.090.112.352.800.030.050.751.250.010.030.250.750.0040.020.100.50
1210L020
0.120.143.03.430.090.112.352.800.020.040.601.000.010.030.250.750.0040.020.100.50
1210L035
0.120.143.03.430.090.112.352.800.020.030.500.850.010.030.250.750.0040.020.100.50
1210L035/30
0.120.143.03.430.090.112.352.800.030.050.751.250.010.030.250.750.0040.020.100.50
1210L050
0.120.143.03.430.090.112.352.800.020.030.500.850.010.030.250.750.0040.020.100.50
1210L050/30
0.120.143.03.430.090.112.352.800.030.050.751.250.010.030.250.750.0040.020.100.50
1210L075
0.120.143.03.430.090.112.352.800.020.030.500.850.010.030.250.750.0040.020.100.50
1210L075/24
0.120.143.03.430.090.112.352.800.050.071.201.800.010.030.250.750.0040.020.100.50
1210L110/12
0.120.143.03.430.090.112.352.80

0.03

0.050.751.250.010.030.250.750.0040.020.100.50
1210L110/16
0.120.143.03.430.090.112.352.800.030.050.751.250.010.030.250.750.0040.020.100.50
1210L110TH
0.120.143.03.430.090.112.352.800.010.030.300.710.010.030.250.750.0040.020.100.50
1210L150
0.120.143.03.430.090.112.352.800.030.050.751.250.010.030.250.750.0040.020.100.50
1210L150TH
0.120.143.03.430.090.112.352.800.030.040.751.070.010.030.250.750.0040.020.100.50
1210L175
0.120.143.03.430.090.112.352.800.020.040.601.000.010.030.250.750.0040.020.100.50
1210L200
0.120.143.03.430.090.112.352.800.030.060.801.600.010.030.250.750.0040.020.100.50
